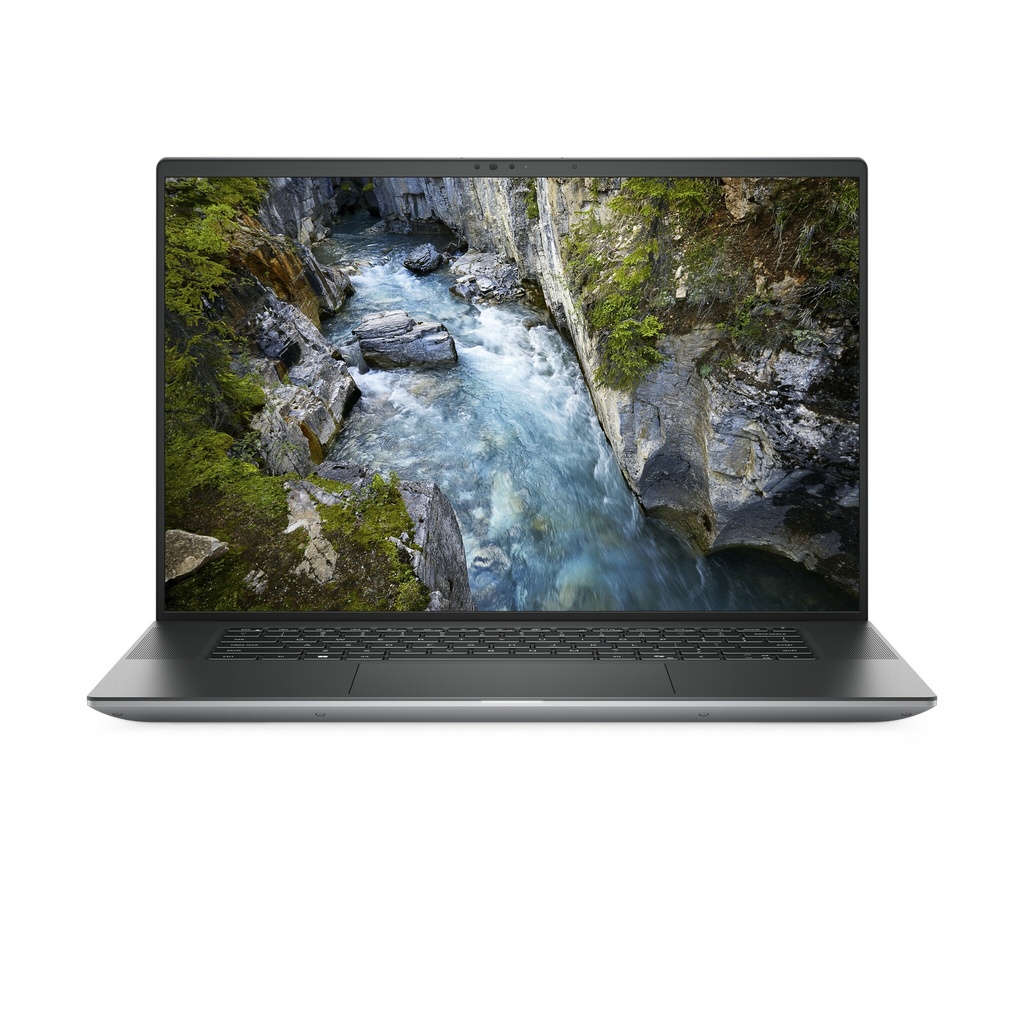

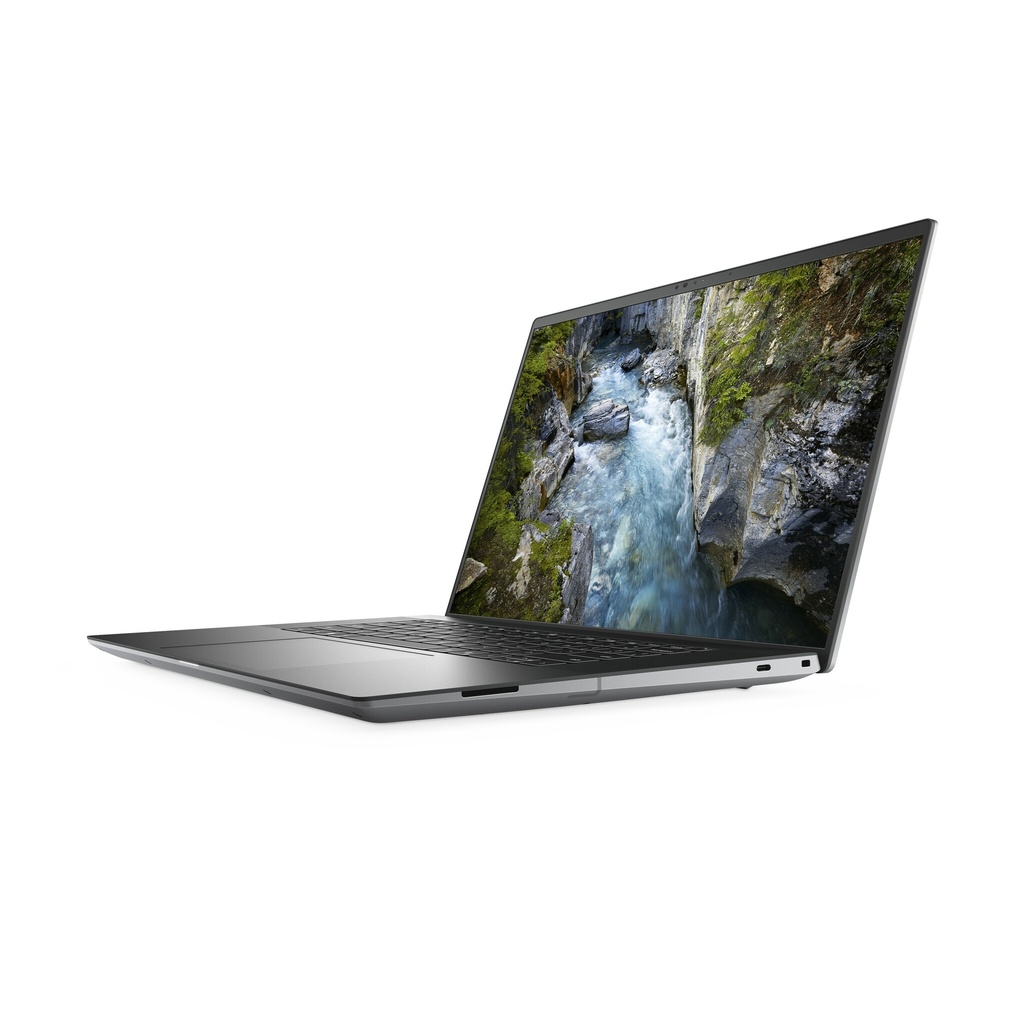

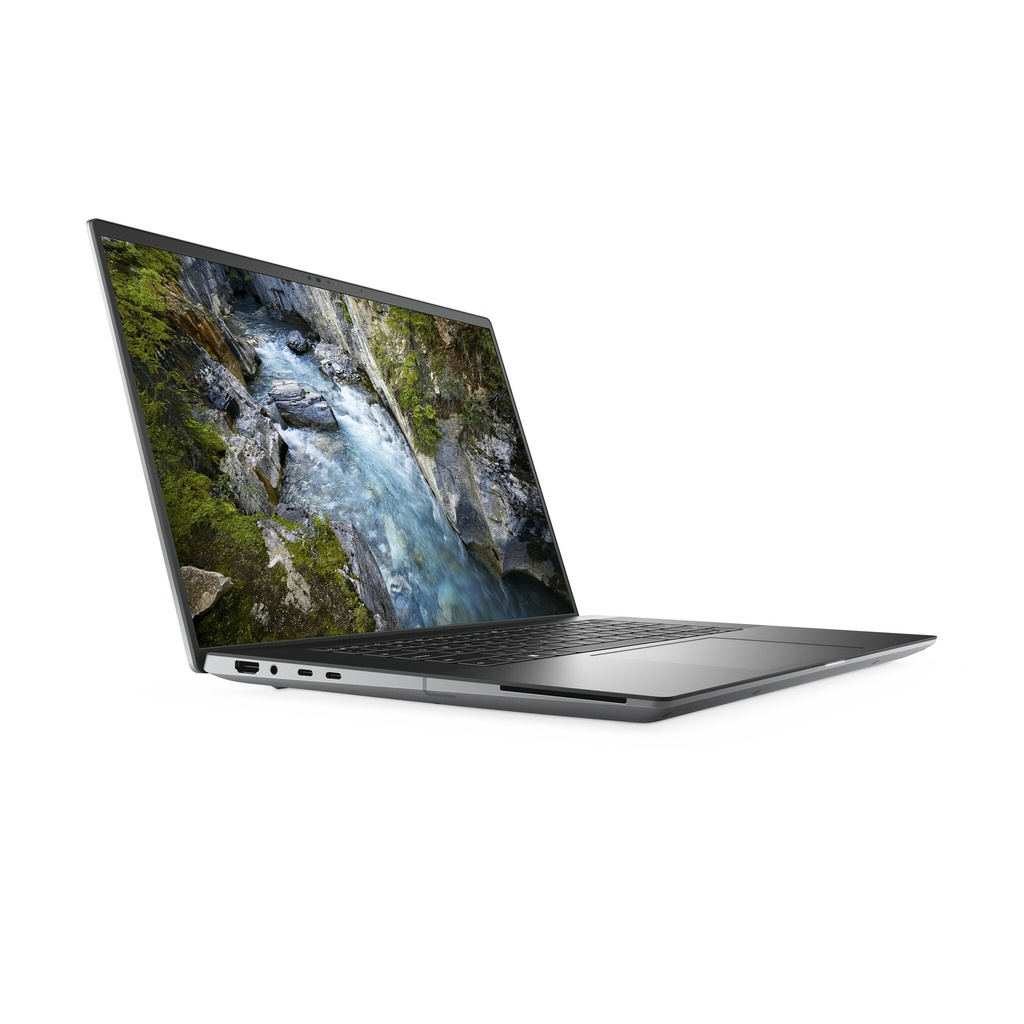

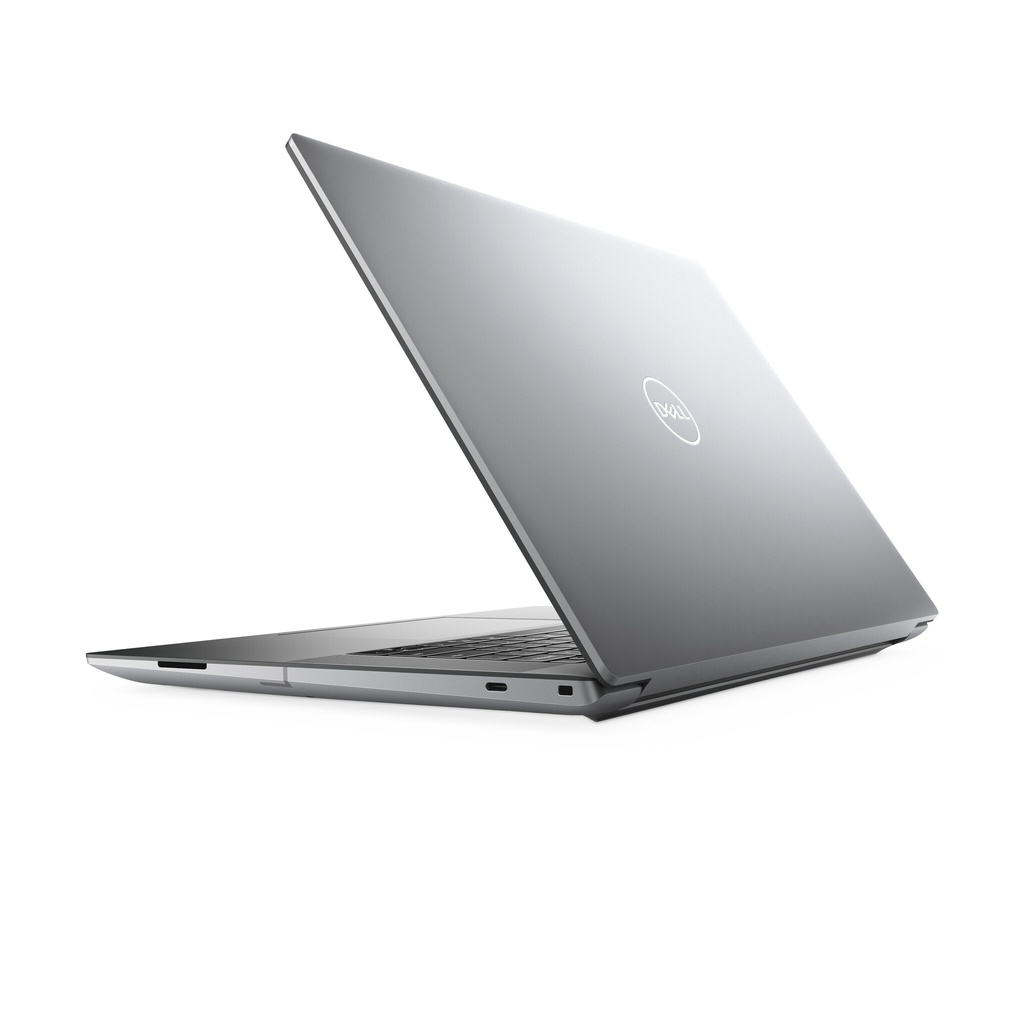

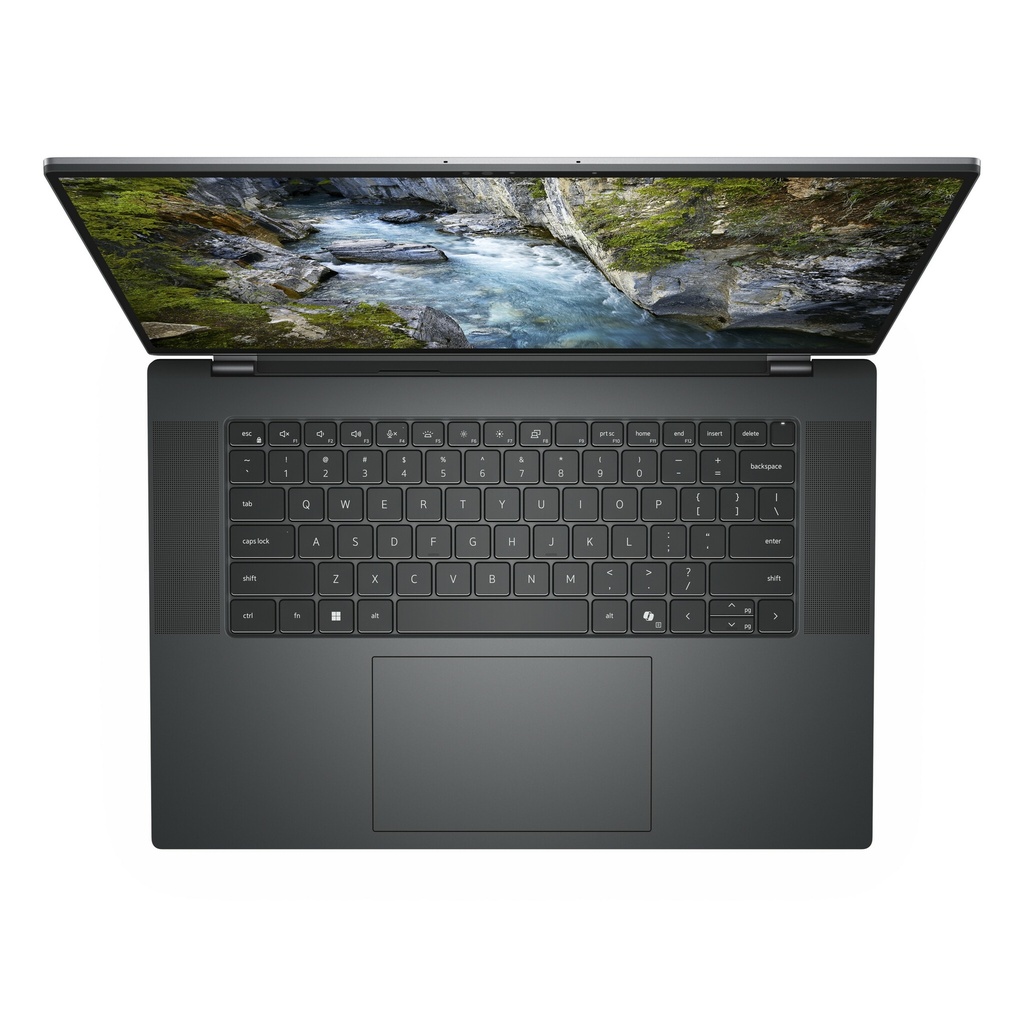

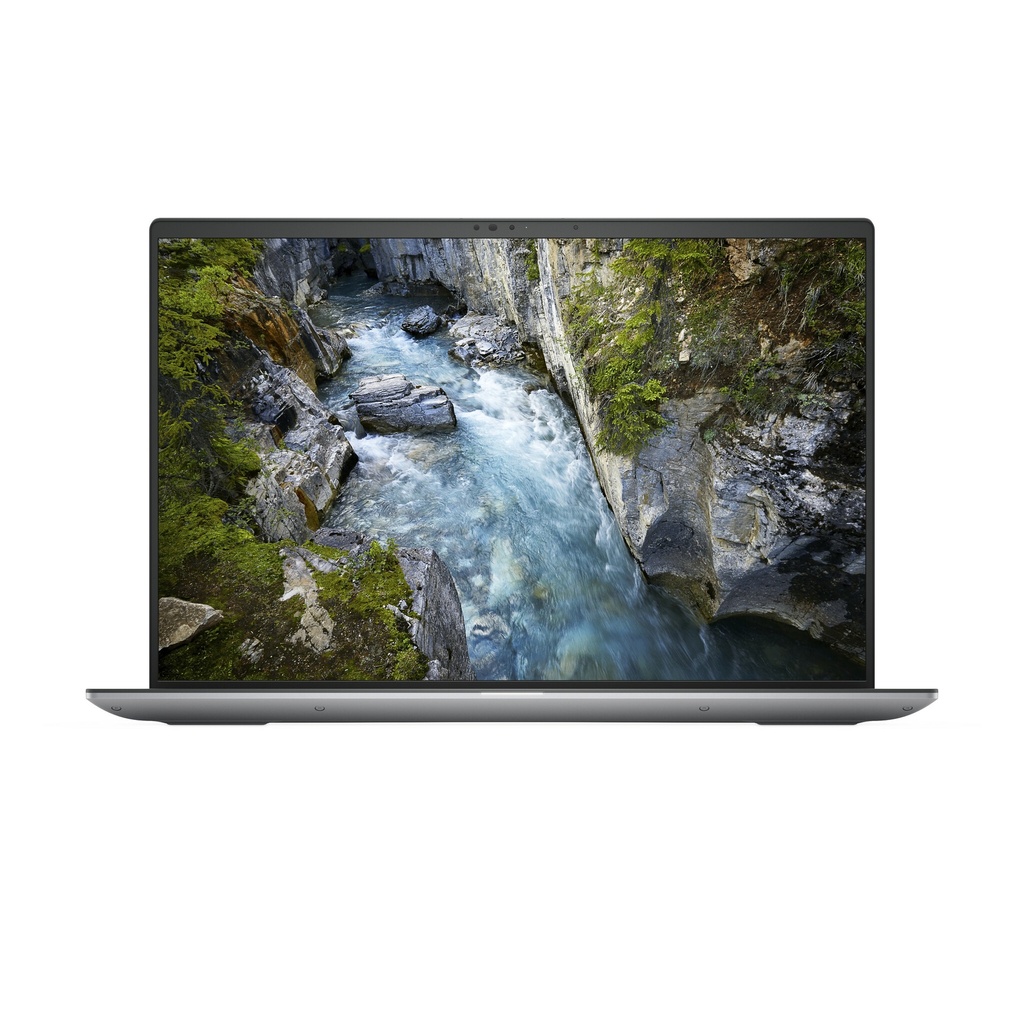

DELL Precision 5690 Intel Core Ultra 7 165H Mobile workstation 40.6 cm (16") Full HD+ 32 GB LPDDR5x-SDRAM 1 TB SSD NVIDIA RTX 2000 Ada Wi-Fi 7 (802.11be) Windows 11 Pro US International Grey
Business Mobile workstation Clamshell Grey
Intel Core Ultra 7 165H Processor cores: 16
40.6 cm (16") Full HD+ 1920 x 1200 pixels IPS LED backlight 16:10
32 GB LPDDR5x-SDRAM
1 TB SSD
NVIDIA RTX 2000 Ada 8 GB Intel Arc Graphics
Wi-Fi 7 (802.11be) Bluetooth
Lithium-Ion (Li-Ion) 99.5 Wh 165 W
Windows 11 Pro 64-bit
| Display diagonal: 40.6 cm (16") |
| Display resolution: 1920 x 1200 pixels |
| Display brightness: 500 cd/m² |
| Pixel density: 142 ppi |
| Processor manufacturer: Intel |
| Processor family: Intel Core Ultra 7 |
| Processor model: 165H |
| Processor cores: 16 |
| Internal memory: 32 GB |
| Storage media: SSD |
| Number of built-in speakers: 4 |
| Number of microphones: 2 |
| Front camera: Yes |
| Video capturing speed: 30 fps |
| Front camera resolution (numeric): 2.07 MP |
| Mobile network connection: No |
| Top Wi-Fi standard: Wi-Fi 7 (802.11be) |
| Bluetooth: Yes |
| Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Form factor: Clamshell |
| Product colour: Grey |
| Accelerometer: Yes |
| Ambient light sensor: Yes |
| Gyroscope: Yes |
| Operating system installed: Windows 11 Pro |
| Battery technology: Lithium-Ion (Li-Ion) |
| Battery capacity: 99.5 Wh |
| AC adapter power: 165 W |
| Width: 353.7 mm |
| Depth: 240.3 mm |
| Weight: 2.03 kg |
| Native aspect ratio: 16:10 |
| Internal memory type: LPDDR5x-SDRAM |
| Combo headphone/mic port: Yes |
| Trusted Platform Module (TPM): Yes |
| Operating system architecture: 64-bit |
| Trial software: No Microsoft Office Licence Included - 30 day Trial Offer Only |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0 |
| Maximum internal memory: 32 GB |
| MIMO: Yes |
| Processor cache: 24 MB |
| Processor cache type: Smart Cache |
| Battery weight: 363 g |
| Number of battery cells: 6 |
| Front camera resolution: 1920 x 1080 pixels |
| SSD interface: PCI Express 4.0 |
| Antenna type: 2x2 |
| On-board graphics card: Yes |
| Panel type: IPS |
| Password protection: Yes |
| Cables included: AC |
| Operating temperature (T-T): 0 - 35 °C |
| Storage temperature (T-T): -40 - 65 °C |
| Operating relative humidity (H-H): 10 - 90% |
| Operating altitude: -15.2 - 3048 m |
| Fingerprint reader: Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1 |
| LED backlight: Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 0 |
| Product type: Mobile workstation |
| Touchscreen: No |
| HD type: Full HD+ |
| RGB colour space: DCI-P3 |
| Colour gamut: 100% |
| Processor boost frequency: 5 GHz |
| Memory form factor: On-board |
| Total storage capacity: 1 TB |
| Optical drive type: No |
| Discrete graphics card: Yes |
| Discrete graphics card model: NVIDIA RTX 2000 Ada |
| On-board graphics card model: Intel Arc Graphics |
| Built-in microphone: Yes |
| Front camera HD type: Full HD |
| Intel® Thunderbolt 4: Yes |
| USB Type-C DisplayPort Alternate Mode: Yes |
| USB Power Delivery: Yes |
| Numeric keypad: No |
| Pointing device: Touchpad |
| Fast charging: Yes |
| AC adapter frequency: 50 - 60 Hz |
| AC adapter input voltage: 100 - 240 V |
| Anti-glare screen: Yes |
| On-board graphics card family: Intel Arc Graphics |
| USB 2.0 ports quantity: 0 |
| HDMI ports quantity: 1 |
| Cable lock slot: Yes |
| Market positioning: Business |
| WLAN controller model: Intel Wi-Fi 7 BE200 |
| WLAN controller manufacturer: Intel |
| Processor threads: 22 |
| On-board GPU manufacturer: Intel |
| Total carbon footprint: 246 |
| Carbon emissions (Manufacturing): 200.49 |
| Carbon emissions (Logistics): 6.888 |
| Total carbon emissions (w/o Use phase): 210.084 |
| Processor generation: Intel® Core™ Ultra (Series 1) |
| Total SSDs capacity: 1 TB |
| Number of SSDs installed: 1 |
| SSD capacity: 1 TB |
| NVMe: Yes |
| Keyboard backlit: Yes |
| HDMI version: 2.1 |
| Speakers manufacturer: Waves |
| Thunderbolt 4 ports quantity: 2 |
| Hall sensor: Yes |
| Proximity sensor: Yes |
| Storage relative humidity (H-H): 0 - 95% |
| Contrast ratio (typical): 1300:1 |
| Memory channels: Dual-channel |
| SSD form factor: M.2 |
| Keyboard language: US International |
| Operating system language: German, Dutch, English, French, Italian |
| Trusted Platform Module (TPM) version: 2.0 |
| Cable lock slot type: Wedge |
| Infrared (IR) camera: Yes |
| Efficient-core Max Turbo Frequency: 3.8 GHz |
| Performance-core Max Turbo Frequency: 5 GHz |
| Performance cores: 6 |
| Efficient cores: 8 |
| Maximum refresh rate: 60 Hz |
| Discrete graphics card memory: 8 GB |
| Discrete graphics memory type: GDDR6 |
| Battery voltage: 11.55 V |
| Battery recharge time: 3 h |
| Non-operating altitude: -15.2 - 10668 m |
| Operating shock: 110 G |
| Non-operating shock: 160 G |
| Operating vibration: 0.66 G |
| Non-operating vibration: 1.3 G |
| Height (front): 2.05 cm |
| Height (rear): 2.22 cm |
| Carbon emissions (Use): 35.916 |
| Carbon emissions (End-of-Life): 2.46 |
| PAIA version: GaBi version 1, 2024 |
| Battery charge indicator: Yes |
| Processor base power: 28 W |
| Maximum turbo power: 115 W |
| Efficient-core base frequency: 0.9 GHz |
| Performance-core base frequency: 1.4 GHz |
| Neural processor unit (NPU): Intel AI Boost |
| Maximum frequency NPU: 1.4 GHz |
| Sparsity support: Yes |
| Windows Studio effects support: Yes |
| AI datatype support on NPU: FP16, FP32, Int8 |
| AI software frameworks supported by NPU: DirectML, ONNX RT, OpenVINO, Windows ML |
| Low Power Efficient-cores: 2 |
| Low Power Efficient-core Max Turbo Frequency: 2.5 GHz |
| Low Power Efficient-core Base Frequency: 700 MHz |
| M.2 SSD size: 2280 (22 x 80 mm) |
| Memory data transfer rate: 7467 MT/s |
| Copilot key: Yes |
